| Code | Hose Capacity | MWP (PSI) | Inlet Size | Outlet Size | Qty | Add to quote | |
|---|---|---|---|---|---|---|---|
 | R530-400-25M | 50m x 25mm 70m x 19mm | 300 | 1 in (Male BSP) | 1 in (Female BSP) | | |
| R530-500-25M | 60m x 25mm 80m x 19mm | 300 | 1 in (Male BSP) | 1 in (Female BSP) | | |
| R530-600-25M | 70m x 25mm 100m x 19mm | 300 | 1 in (Male BSP) | 1 in (Female BSP) | | |
| R530-400-38M | 20m x 38mm 30m x 32mm | 300 | 1 ½ in (Male BSP) | 1 ½ in (Female BSP) | | |
| R530-650-38M | 30m x 38mm 50m x 32mm | 300 | 1 ½ in (Male BSP) | 1 ½ in (Female BSP) | | |
| R530-400-50M | 15m x 50mm | 300 | 2 in (Male BSP) | 2 in (Female BSP) | |
Manual Rewind Hose Reels

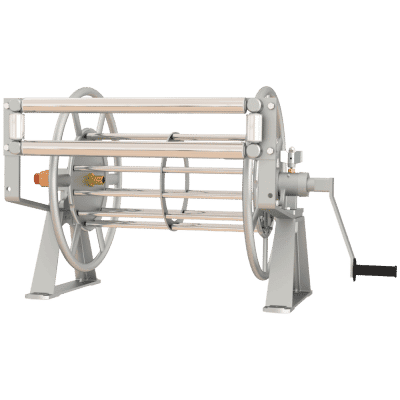

Real Ezy 530 Series Manual Rewind Hose Reel
These reels employ a hand-operated crank that allows for rewinding hose in any location – no power source necessary.
- High-performance and long-term reliability
- Durable low maintenance design
- 10-year warranty on reel
- Replacement parts readily available
Description
Standard Features
- Lightweight and compact for easy installation in tight places
- Stainless steel a guides for hose (also available without)
- Hose guide to prevent hose from kinking
- Rugged aluminium construction for durability in tough conditions
- Full flow fluid path and swivel to maximise flow
- Easy grease bronze swivel and bearings
- Can be mounted on vehicle trays, benches, walls and ceilings
- Right-hand and left-hand configurations available for handle
- Removable handle for storage and transport
Standard Fluids Handled
- Water
- Oil
- Diesel
- Air
- Waste Oil
- Chemicals (herbicide & pesticide)
Standard Applications
- Fire & Emergency
- Mining & Civil
- Wash Down
- Dust Suppression
- Agriculture
- Diesel & Chemical Transfer
- Service & Lube Trucks
- High Pressure Washing
Additional information
| Hose Capacity | 15m x 50mm, 20m x 38mm 30m x 32mm, 30m x 38mm 50m x 32mm, 50m x 25mm 70m x 19mm, 60m x 25mm 80m x 19mm, 70m x 25mm 100m x 19mm |
|---|---|
| MWP (PSI) | 300 |
| Inlet Size | 1 in (Male BSP), 1 ½ in (Male BSP), 2 in (Male BSP) |
| Outlet Size | 1 in (Female BSP), 1 ½ in (Female BSP), 2 in (Female BSP) |
| Height | 587 mm |
| Width | 756 mm (excl. handle), 935 mm (incl. handle), 856 mm (excl. handle), 1035 mm (incl. handle), 956 mm (excl. handle), 1135 mm (incl. handle), 756 mm (excl. handle), 935 mm (incl. handle), 1006 mm (excl. handle), 1185 mm (incl. handle), 756 mm (excl. handle), 935 mm (incl. handle) |
| Depth | 665 mm |
| Weight | 29 kg, 30.5 kg, 32 kg, 31 kg, 34 kg, 32 kg |
